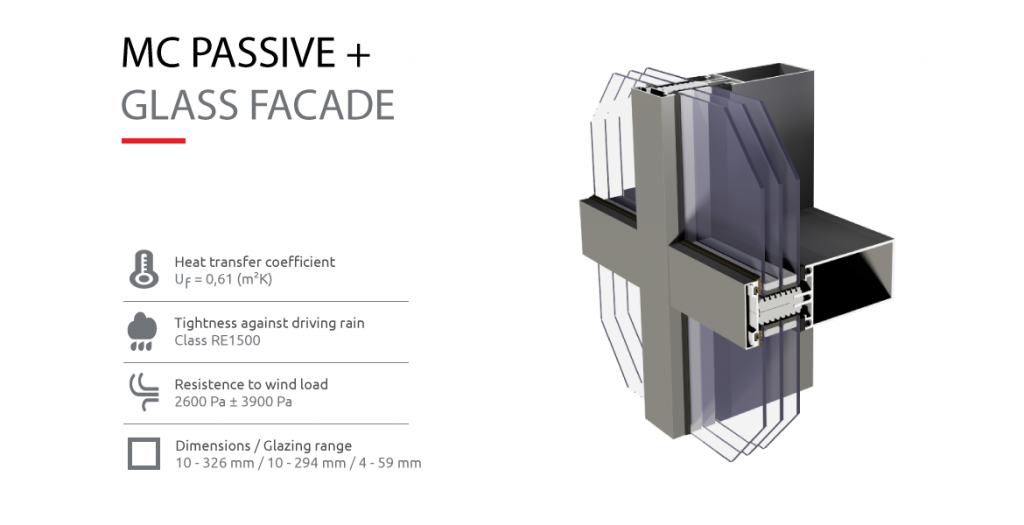

A mullion-transom system used to design modern curtain walls whose shapes are simple and complex, with the best thermal performance ensured.
MC Passive+ offers basic features and possibilities available with MC Wall structures.
The improved thermal performance results from application of a new insulator made of innovative materials, which made it possible to obtain an even better heat-transfer coefficient – Uf starting at 0,61 W/m2K. MC Passive+ offers one of the highest technical parameters among aluminium facade systems available on the market to respond to needs of the energy-saving and passive building industry.
A wide range of decorative cover caps makes it possible to obtain varied visual effects on the curtain wall.
Mullion-transom visual width: 55 mm.
The option of bending profiles.
A wide range of colours available - RAL palette, structural colours, Wood Colour Effect, bi-colour.
|System||Material||Depth mullion||Depth transom||Glazing range|
|MC PASSIVE +||Aluminium||10 - 326 mm||10 - 294 mm||4 - 59 mm|
