IP
Imperial system is designed for designing windows, doors and shop windows with high thermal insulation parameters. Available system variants are IP i, IP i+.
High insulation parameters are achieved through the use of special thermal inserts that are placed between the thermal partitions and around the glass. In this way, the thermal conductivity coefficient is improved by 0.2 to 0.5 W/(m2K).
The system is intended for use in residential and public buildings, it enables the design of modern window construction solutions in many variants, and they can also be installed in facade systems.
The profiles are available in rectangular and rounded versions, and in addition to the standard ones, they are also suitable for the installation of hidden fittings. A wide range of glazing enables the application of all existing types of glass – single-chamber, double-chamber, acoustic and anti-burglary.
A large palette of colors available – RAL, structural colors, wood imitation, anodizing, two-tone profiles.

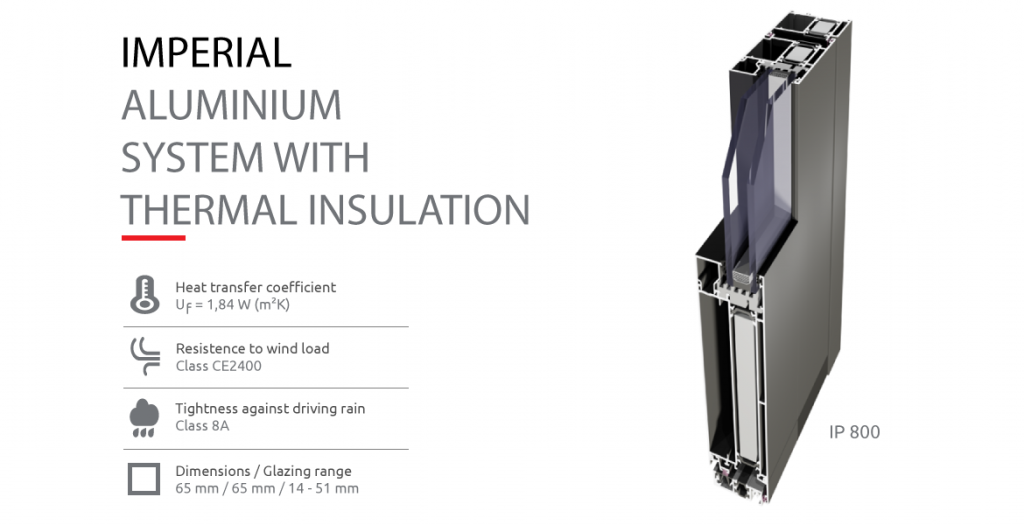

IP 800
Aluminum system with thermal break intended for making doors with high thermal insulation. Compatible with other IP series systems.
IP 800 has excellent anti-burglary properties due to the location of the lock, which is located far from the outside.
The system is available in two variants: standard IP800 i, as well as IP 800 i+ – a highly thermally insulated system with special thermal inserts between the thermal partitions and around the glass.
Colors – RAL palette, anodizing, structural color palette, tree bark imitation palette. The possibility of two-color profiles for an even greater degree of individuality in door design.
Das System ist in zwei Varianten erhältlich: als Standard IP800 und als IP 800 i+ – hochwärmeisoliertes System mit speziellen Thermoeinsätzen zwischen den thermischen Barrieren und um das Glas herum.
Farben – RAL-Palette, Eloxierung, Strukturfarbenpalette, Nachahmung Holzrinde. Möglichkeit von Zweifarbprofilen für noch mehr Individualität im Türdesign.
System | Heat transfer coefficient | Resistence to wind load | Tightness against driving rain | Dimensions / Glazing range |
IP | Uf 1,57 W/m2K | Class 4 | Class E1350 | 65 mm / 74 mm / 4 – 51 mm |
IP i+ | Uf 1,28 W/m2K | Class 4 | Class E1350 | 65 mm / 74 mm / 4 – 51 mm |
IP 800 | Uf 1,84 W/m2K | Class CE 2400 | Class 8A | 65 mm / 65 mm / 14 – 59 mm |
IP 800 i+ | Uf 1,67 W/m2K | Class CE 2400 | Class 8A | 65 mm / 65 mm / 14 – 59 mm |
