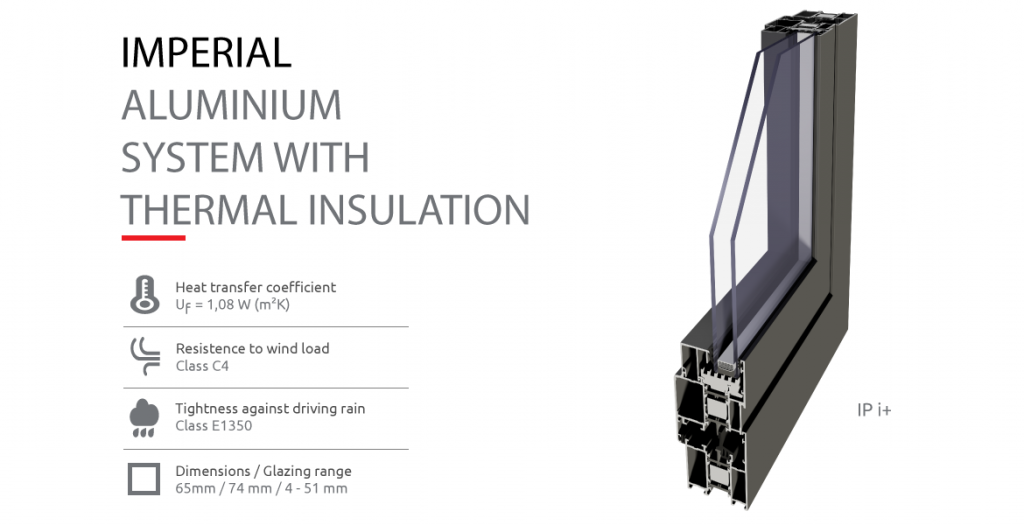

IP is the system designed for designing windows, doors and shop windows with high thermal insulation parameters. Available system variants are IP i and IP i+.
High thermal insulation power was achieved by applying special thermal inserts slid between thermal separators and around the glass pane.
The system is designed for use in residential and public buildings, and also allows designing modern window solutions in multiple variants. Option of installing windows in facade systems.
Large number of shapes in the system guarantees obtaining desired appearance and structural strength. Shapes of profiles suitable for installation of various peripheral hardware, including hidden hinges and uPVC hardware. Profile drainage in two variants: traditional and hidden. Profile bending is also available in this system.
A wide range of glazing allows using all types of single and double cavity, acoustic and anti-burglary glass panes. Glazing range between 4 and 51 mm.
A wide range of colours available - RAL palette, structural colours, Wood Colour Effect, anodized, bi-colour.
For available colours please click here.
For our offer of window handles, please click here.
Three-chamber window system with thermal insulation designed for designing windows with hidden sash, invisible from the outside. The system features specially designed shape of the frame hiding the full height of sash profile.
Hidden sash system is the system preferred by designers, as it allows “hiding” windows in aluminium and glass structure; thanks to application of this solution opened and fixed window segments look identical from the outside.
Design of systems IP SU is based on proven, extensive and recognized base system Imperial. Profile drainage in two variants: traditional and hidden. Profile bending is also available in this system.
Window system designated for designing tilt out and turn out windows. Turn out windows can be fitted with two types of hinges: rotating hinges or scissor hinge; window hardware used allows tilting the top or the bottom of the window outwards; option of turn out window with the limit stop. Available option of integrating windows with walls by using reversing profile.
System IP OUT is available in the variant with improved thermal insulation power - available options: IP OUTi with additional, peripheral thermal insulation, at the profile-glass interface; IP-OUT i+ with additional thermal insulation between thermal spacers.
This system is a very popular in Nordic countries and on British Isles. Perfectly matching old and stylized manor houses, wood cabins or simple Scandinavian type houses.
|System||Heat transfer coefficient||Resistence to wind load||Tightness against driving rain||Dimensions / Glazing range|
|IP||Uf 1,57 W/m2K||Class C4||Class E1350||65 mm / 74 mm / 4 - 51 mm|
|IP i+||Uf 1,28 W/m2K||Class C4||Class E1350||65 mm / 74 mm / 4 - 51 mm|
|IP SU||Uf 1,63 W/m2K||Class C5/B5||Class E1200||66 mm / 68 mm / 4 - 41 mm|
|IP SU i||Uf 1,27 W/m2K||Class C5/B5||Class E1200||66 mm / 68 mm / 4 - 41 mm|
|IP OUT||Uf 1,85 W/m2K||Class C5/B5||Class E900||65 mm / 74 mm / max 61 mm|
|IP OUT I+||Uf 1,68 W/m2K||Class C5/B5||Class E900||65 mm / 74 mm / max 61 mm|
